Project Information

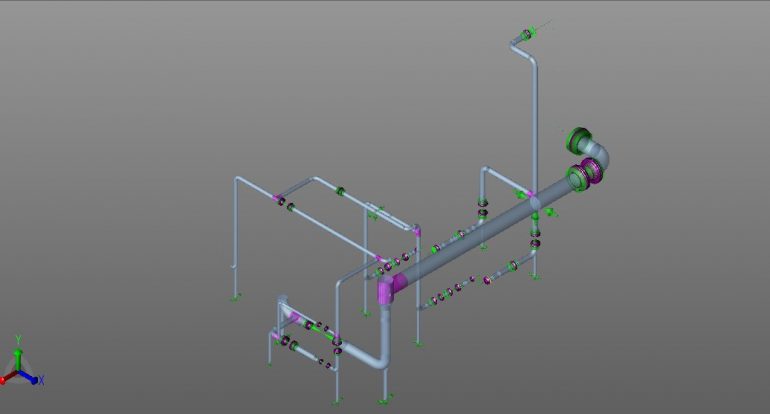

Piping stress analysis of vacuum refrigeration propane storage facility that contained 20 systems using CAESAR II
Description
Client
The client is a leader in engineering and design providing services to the petrochemical industry. Their experienced technical team leveraged industry knowledge to efficiently define, design and execute engineering projects globally.
Engineering Requirement
The client required piping stress analysis of Refrigeration Propane storage facility that contained 20 systems including 108 lines. ASME B31.3 codes and standards had to be followed to ensure higher quality.
Delivered
- CAESAR II (.c2) File
- CAESAR II output report
- Isometrics support markup
