Industrial piping systems are designed to transport fluids, gases, steam, chemicals, and slurries safely across process plants, manufacturing facilities, offshore assets, and utility networks. While pipe material selection, routing, and stress calculations are often highlighted in engineering discussions, one equally critical aspect that ensures piping reliability is the proper selection of pipe support arrangements.
The right pipe support not only carries the dead weight of the line but also controls movement caused by pressure, thermal expansion, vibration, and external loads. Poor support planning can lead to pipe sagging, excessive nozzle loads, fatigue failures, leakage, and even shutdowns. This is why understanding the various pipe support types used in industrial environments is fundamental to robust piping engineering.
In this blog, weāll explore the major types of pipe support used in piping engineering, along with their functions, selection considerations, common support classifications, and their role in maintaining piping stability under operating loads.
What is Pipe Support in Piping Engineering?
In simple terms, pipe support is a structural element or mechanical attachment used to hold, restrain, guide, suspend, or stabilize a piping system.
Pipe supports are installed throughout a piping route to:
- Bear pipe self-weight and fluid weight
- Limit undesirable displacement
- Absorb or control thermal movement
- Reduce vibration and shock
- Protect connected equipment nozzles
- Maintain line slope and alignment
Depending on the service conditions, engineers can choose from different types of pipe supports to achieve the required mechanical behavior of the line.
Why Pipe Supports Are Important in Industrial Plants
Industrial plants operate under highly variable conditions, including elevated temperature, pressure pulsation, rotating equipment vibration, wind load, seismic activity, and operational transients.
Without properly designed industrial pipe supports, the piping network becomes vulnerable to:
- Overstressing due to expansion/contraction,
- Excessive loading on pumps, vessels, heat exchangers, and compressors,
- Support steel overloading,
- Joint leakage,
- Fatigue cracks,
- Resonance and vibration failures.
A well-engineered support arrangement essentially acts as the backbone of piping integrity. In fact, many piping stress failures observed in brownfield plants are not due to pipe thickness or metallurgy issues, but due to incorrect support spacing, wrong support type, or missing restraints.
Factors for Selecting the Right Kinds of Pipe Support
Selecting the right types of piping support is not a one-size-fits-all decision. Multiple engineering factors must be reviewed before finalizing support placement and arrangement:
- Pipe Size and Weight: Larger diameter pipes carrying dense media require stronger load-bearing support.
- Operating Temperature: High-temperature lines undergo thermal expansion, requiring support that permits controlled movement.
- Process Fluid Characteristics: Cryogenic, corrosive, insulated, or abrasive services may need special support materials.
- Pipe Routing Geometry: Vertical risers, long horizontal runs, and rack-mounted systems each demand different support logic.
- Vibration Potential: Lines connected to rotating equipment need anti-vibration restraints.
- Equipment Nozzle Sensitivity: Pumps, compressors, turbines, and vessels have allowable nozzle load limits that directly influence support positioning.
- Structural Availability: Support feasibility depends on nearby steel, concrete, sleepers, or pipe racks.
Only after reviewing these parameters can piping engineers decide the most suitable kinds of pipe support for each line.
Pipe Support Classification: Primary, Rigid, and Function-Based Types
Pipe support types are generally grouped based on the function they perform within a piping system. Each category serves a distinct purpose in controlling pipe load, movement, or external operational forces.
| Pipe Support Category | Primary Function | Typical Purpose in Piping System | Common Examples |
| Load Bearing Supports | Carry vertical pipe and fluid load | Support the self-weight of the pipe while maintaining alignment | Rest supports, Shoe supports, Spring hangers, Rigid rod hangers, Pipe rack supports |
| Restraining Supports | Restrict movement in one or more directions | Control axial, lateral, or overall displacement caused by pressure and thermal loads | Guide supports, Anchor supports, Rigid struts, Equipment-connected supports |
| Dynamic / Special Supports | Resist sudden or variable operational forces | Minimize vibration, absorb shock, and stabilize piping during transient conditions | Snubbers, Sway braces, Material-specific supports |
And it is important to note that in practice, piping systems require a combination of these support categories to ensure mechanical stability, controlled flexibility, and long-term operational safety.
Main Types of Pipe Support Used in Industry
Below are the most common and functionally important different types of pipe support used in industrial piping systems.

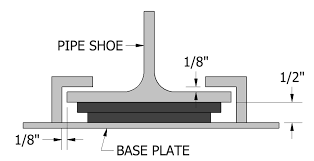

Rest / Shoe Supports
Rest supports are the simplest and most widely used piping support types. Here the pipe rests directly on structural steel, sleepers, or support beams. Shoe supports are an extension of this concept where a fabricated shoe is welded to the pipe to elevate it and distribute load.
They are commonly used for:
- Horizontal Process Lines,
- Insulated Hot Lines,
- Utility Pipe Racks.
Their main function is vertical load transfer while allowing some axial movement if designed as sliding supports.
Guide Supports
Guide supports allow pipe movement in one direction while restricting lateral displacement. These are essential in thermal expansion management because they channel pipe growth along a predefined axis and prevent buckling.
Guide arrangements are often placed:
- Near Expansion Loops,
- On Long Straight Runs,
- Adjacent To Anchors.
Among all types of pipe support, guides play a critical role in ensuring predictable displacement behavior during operation.
Anchor Supports
Anchor supports completely restrain pipe movement in all directions.
They are rigid fixation points designed to absorb:
- Axial Loads,
- Thrust,
- Thermal Reactions.
Anchors divide a long piping system into manageable expansion zones and help direct thermal movement away from sensitive equipment. And, improper anchor design can transfer enormous forces to structures, which is why they are carefully validated during stress analysis.

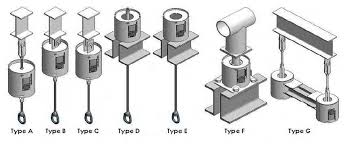

Spring Hangers
Spring hangers are variable or constant load supports that accommodate vertical thermal movement while continuing to support the pipe load.
They are ideal for:
- High Temperature Lines,
- Hot Utility Lines,
- Long Suspended Runs.
When the pipe moves upward or downward due to expansion, the spring compresses or extends, minimizing stress concentration. These are among the most specialized types of pipe support used when rigid supports would otherwise lock the line.
Rigid Rod Hangers
Rigid rod hangers are suspended vertical members used to support piping from overhead steel.
Unlike spring hangers, they do not absorb vertical movement and therefore are used where thermal displacement is limited.
They are common in:
- Suspended Utility Corridors,
- Non-Critical Process Lines,
- Drainage And Low-Temperature Service.

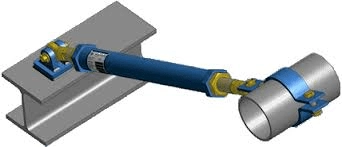

Rigid Struts
Rigid struts are compression-tension members designed to restrain movement in a specific direction. These supports are often used where horizontal stability is required, especially on elevated lines subject to wind or equipment-induced movement.

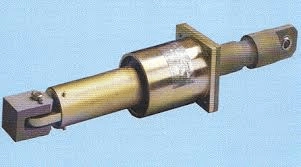

Snubbers / Dynamic Restraints
Snubbers are special dynamic supports that allow slow thermal movement but lock instantly during sudden events such as:
- Water Hammer,
- Seismic Disturbance,
- Relief Valve Discharge,
- Pressure Surge.
This makes them indispensable industrial pipe supports in critical power, refinery, and offshore applications.

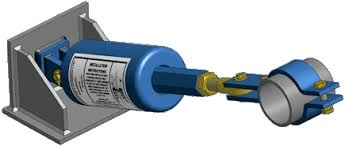

Sway Braces
Sway braces are used to control side-to-side oscillation and vibration.
They provide resistance against:
- Mechanical Vibration,
- Wind Sway,
- Transient Lateral Movement.
They are commonly seen on long suspended piping or lines near reciprocating machinery.
Material-Specific Supports
Certain services require support systems based on pipe material or service insulation.
Examples include:
- PTFE-Lined Pipe Supports,
- Cryogenic Low Temperature Supports,
- FRP/GRP Pipe Cradles,
- Stainless Steel Corrosion-Isolated Supports.
These specialized piping support type prevent galvanic corrosion, insulation crushing, and material damage.
Pipe Rack Supports
Pipe rack supports are integrated support arrangements designed specifically for multi-line routing over rack structures.
These include:
- Beam Resting Supports,
- Guided Shoes,
- Hold-Down Clamps,
- Line Stop Arrangements.
Since racks carry multiple process and utility lines together, support spacing and interaction become extremely important.
Equipment-Connected / Nozzle-Load Supports
Lines connected to:
- Pumps,
- Compressors,
- Vessels,
- Turbines,
- Air Coolers,
- Exchangers
And this must be supported in a way that minimizes nozzle loading. Fundamentally, these supports are strategically placed close to equipment to absorb dead weight and thermal reactions before they transfer to nozzles. Among all different types of pipe supports, this category has the highest direct impact on equipment reliability.
Common Pipe Support Problems & How to Avoid Them
Even with standardization, pipe support failures are common when engineering coordination is weak.
Frequent issues include:
- Incorrect Support Spacing,
- Support Omission In Long Spans,
- Thermal Growth Blockage,
- Support Steel Clash,
- Over-Constrained Piping,
- Underestimation Of Vibration Loads,
- Insulation Damage Due To Direct Clamping.
These problems can be avoided by:
- Integrated 3D support modeling,
- Stress-analysis-led restraint planning,
- Proper field accessibility review,
- Multidisciplinary coordination with civil and structural teams.
How Types of Piping Support Integrates with Stress Analysis
Selecting kinds of pipe support is not merely a drafting exercise, it is deeply tied to piping flexibility and stress behavior.
During pipe stress analysis, engineers simulate:
- Sustained Load Cases,
- Thermal Load Cases,
- Occasional Loads,
- Dynamic Events,
- Nozzle Load Transfer.
The support arrangement is repeatedly optimized until:
- Code Allowable Stresses Are Satisfied,
- Nozzle Loads Are Within Limits,
- Displacement Remains Controlled,
- Support Reactions Are Practical.
This means the final pipe support types are always an output of both piping layout engineering and stress engineering working together.
Rishabh Pro Engineering’s Pipe Support Capability
Selecting suitable pipe support types involves evaluating several piping conditions such as line load, thermal displacement, vibration, routing pattern, and equipment connectivity. Based on these operating demands, the right combination of load bearing, restraining, and dynamic supports can be identified to maintain piping stability and controlled movement.
Rishabh Pro Engineering helps industrial projects assess the most practical pipe support arrangements for varying service conditions, ensuring each piping system is aligned with functional reliability and installation feasibility. For projects that require a deeper evaluation of support placement, load calculations, and restraint validation, our detailed pipe support design approach offers a more comprehensive engineering framework.
Final Words
Choosing the right types of pipe support is one of the most decisive factors in achieving a safe, durable, and maintenance-friendly piping system. Since every line behaves differently underweight, temperature, and operational loads, engineers must evaluate multiple pipe support types before arriving at the ideal arrangement.
Whether it is resting support, spring hangers, anchors, guides, or dynamic restraints, each type of piping support plays an important role in maintaining piping stability, equipment safety, and long-term plant reliability. As an experienced piping engineering company, Rishabh Pro Engineering helps industries evaluate suitable pipe support arrangements that align with varying load, movement, and operational requirements.
Frequently Asked Questions On Piping Support Types
Q: How does pipe support spacing affect piping performance?
A: Pipe support spacing has a direct impact on pipe sagging, vibration behavior, load distribution, and overall line stability. If supports are placed too far apart, the piping system may experience excessive bending stress and deflection. Proper spacing helps maintain alignment while ensuring that loads are transferred safely to the supporting structure.
Q: Can one piping line use multiple types of pipe support together?
A: Yes, most industrial piping lines use a combination of pipe support types rather than a single support arrangement. For example, a line may include rest supports for vertical load bearing, guide supports for directional movement control, and snubbers or sway braces for vibration restraint. Combining support functions allows the piping system to remain both flexible and mechanically secure under varying operating conditions.
Q: Which pipe support types are commonly used for high-temperature lines?
A: High-temperature piping systems typically require support that can accommodate thermal expansion without overstressing the line. Spring hangers, guided shoe supports, anchors, and dynamic restraints are commonly used in such services to manage vertical movement, axial growth, and thermal load transfer effectively.
Q: Are pipe support requirements different for rotating equipment connected lines?
A: Yes, piping connected to pumps, compressors, turbines, and similar rotating equipment often requires carefully selected support arrangements to reduce vibration transmission and limit nozzle loading. In such cases, supports are positioned not only to carry pipe weight but also to protect equipment alignment and operational reliability.
Q: When should special or customized pipe support be considered?
A: Special pipe supports are typically considered when standard support arrangements cannot address unique piping conditions such as high thermal displacement, severe vibration, space constraints, non-metallic piping, cryogenic service, or unusual structural interfaces. These situations often demand support tailored to the functional behavior of the line.
