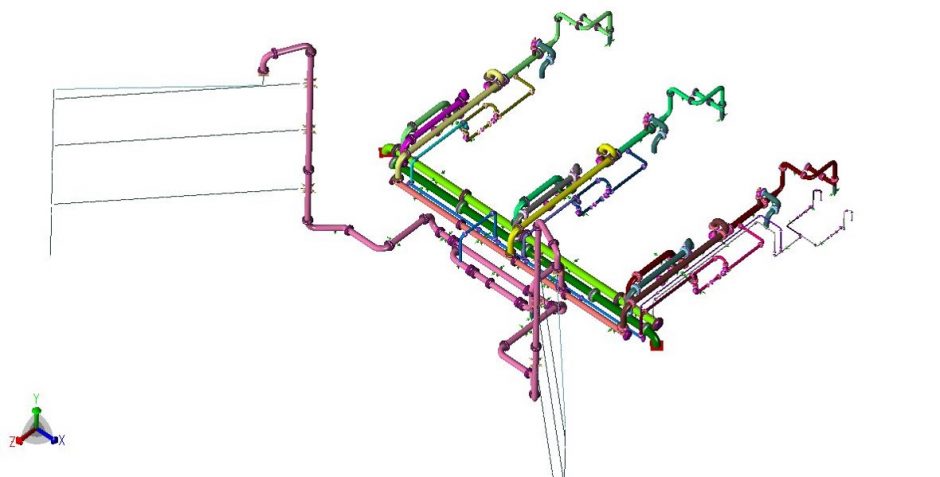

A piping stress model may appear complete on the screen, geometry built, restraints assigned, materials selected, and code parameters entered. But that alone does not guarantee a dependable analysis. Because Hexagon software only calculates what the engineer asks it to calculate. And that makes load cases in CAESAR II one of the most important parts of the entire stress study.
A piping system never experiences just one force at a time. In real operating conditions, it is continuously subjected to self-weight, internal pressure, process temperature, wind, seismic activity, fluid-induced forces, and in some cases sudden transient events. Unless these conditions are properly simulated, even a well-built model can produce results that look acceptable in software but become risky in the field.
This is exactly why experienced stress engineers focus heavily on building the right CAESAR II load cases before reviewing a single output report. The software can solve mathematics instantly, but the engineering reliability of that solution depends entirely on the conditions defined by the analyst. And in short, pipe stress accuracy is not driven by modeling alone, but it is driven by the logic behind the selected load cases.
Before you trust any CAESAR II output, you need the right load cases. This blog walks through what load cases mean, the essential set (from SUS and OPE to wind, seismic, PSV, slug and surge), how CAESAR II combines them, and how we define them at Rishabh Pro Engineering.
What Is a Load Case in CAESAR II
A load case is a simulated condition created by combining multiple loads that may act on the piping system at the same time.
Instead of checking the line only for weight or only for temperature, engineers define practical operating scenarios such as:
- Weight With Pressure,
- Weight With Pressure And Thermal Expansion,
- Operating Condition With Wind,
- Operating Condition With Seismic Acceleration,
- Or Operating Condition With Sudden Reaction Forces.
Each of these combinations tells the software one thing:
Assume the piping is facing this exact field condition and calculate how it will respond.
That response includes:
- pipe displacement,
- developed stress,
- restraint loading,
- and force transfer to connected equipment.
So every major result in CAESAR II is directly linked to how effectively these load cases are structured.
Why Load Case Selection Matters More Than Software Input
There is a tendency to think that once the geometry is modeled correctly, the difficult part is done. Actually, that is where the real engineering begins.
A perfectly created model can still lead to incomplete conclusions if the piping is not checked against the conditions it will actually face during hydrotesting, normal operation, thermal expansion, occasional environmental events, or upset scenarios.
For instance:
- A line may pass under sustained load but deflect heavily during hydrotest,
- Thermal nozzle loads may remain acceptable until wind acts on the hot displaced pipe,
- Support reactions may look stable until a psv discharge introduces sudden thrust,
- And long routed lines may remain compliant until slug force is considered.
These are not modeling errors. These are missing CAESAR load cases. That is why defining them is not a routine software entry task ā it is the engineering heart of stress analysis.
Core Load Cases in CAESAR II
A practical pipe stress model typically includes a set of standard and project-specific CAESAR II load cases, each built to represent one actual condition the piping may experience through installation, testing, operation, or occasional disturbance.
Hydrotest Load Case
Hydro testing is temporary, but it can create one of the heaviest loading conditions a piping system will ever experience. During testing, the pipe is filled completely with water and subjected to hydro pressure. Since water is often heavier than process fluid, long spans and branch sections may see higher sagging than under regular operating service. This is why hydrotest is one of the first load cases in CAESAR II engineers review when evaluating temporary support needs and pre-commissioning safety.
Sustained Load Case (SUS)
The sustained case captures the loads that remain continuously present throughout the life of the system:
- Pipe Self-Weight,
- Valves And Fittings,
- Insulation,
- Fluid Weight,
- And Internal Pressure.
W+P1
This forms the basic structural reality check of the line and indicates whether the piping can safely carry its permanent loading without excessive sagging or overstress. Among all CAESAR II load cases, this is the baseline compliance condition.
Operating Load Case (OPE)
Once the process starts, the piping no longer behaves like a cold static structure. It begins to grow, shift, slide, and push against restraints due to thermal expansion.
That complete running condition is represented in the operating case.
W+T1+P1
This is where the real movement pattern becomes visible:
- Thermal Displacement,
- Friction-Generated Restraint Loads,
- Guide Interaction,
- And Nozzle Force Transfer.
Most field behavior starts becoming clear only after these CAESAR 2 load cases are solved.
ALT Sustained (Hot Sustained) Load Case
Some support problems do not appear in the cold installed position. They appear after the line has already moved. As the piping shifts thermally, spring supports rebalance, sliding supports react differently, and resting conditions change. The ALT sustained review helps engineers understand whether the sustained portion of loading becomes more severe once the system settles in its hot operating position. This is especially valuable in long rack systems and high-temperature routed networks.
Thermal Expansion Load Case (EXP)
Thermal expansion is one of the most critical stress-producing conditions in any piping system.
Rather than checking temperature independently, CAESAR II isolates the thermal effect by comparing the hot operating state against the cold sustained condition.
(W+T1+P1)-(W+P1)
This shows whether the piping has enough flexibility to absorb movement without overstressing elbows, branches, anchors, or connected equipment. In many projects, support relocation, loop addition, or rerouting decisions emerge only after reviewing these load cases in CAESAR.
Wind Load Case (OCC)
Wind is not a constant load, but for elevated outdoor piping it can create substantial lateral reactions. Since the pipe has already shifted due to temperature, wind is usually checked on the hot operating position to understand actual support behavior under side loading. These CAESAR load cases are important for guide sizing, line stop checks, and steel support frame loading.
Seismic Load Case (OCC)
Where seismic criteria apply, equivalent directional acceleration is introduced to simulate earthquake movement. Even when the piping performs well under regular operating conditions, seismic movement can generate high anchor forces, restraint shock, and sway in unsupported sections. This makes seismic one of the more critical load cases in CAESAR 2 for plants located in active seismic zones.
PSV Reaction Force Load Case (OCC)
When a pressure safety valve lifts, sudden discharge momentum generates a reaction thrust on the connected piping. That short-duration event can create significant local anchor loading and branch overstress if not modeled. For critical pressure relief systems, these project-specific CAESAR II load cases often become decisive in support strengthening and nozzle protection.
Slug Force Load Case (OCC)
In systems carrying intermittent liquid movement, especially multiphase or condensate lines, fluid slugging can produce impact forces at elbows and direction changes. These occasional forces are introduced separately because they can sharply increase local support and restraint demand.
Surge / Water Hammer Load Case
Rapid valve closure, sudden pump stoppage, or abrupt fluid acceleration may generate hydraulic surge and thrust loading. Though not applicable to every line, where transient studies indicate water hammer risk, these are added as special load cases in CAESAR II to assess anchor stability and shock resistance.
Load Case Combinations: How CAESAR II Builds the Bigger Engineering Picture
One of the major strengths of CAESAR II is that it does not stop solving isolated cases.
It mathematically combines them into code-based categories such as:
- Sustained Stress,
- Expansion Stress Range,
- And Occasional Stress.
These combined checks allow the engineer to compare actual system behavior against allowable code limits in a much more practical way. However, even this automated combination logic is only as trustworthy as the base CAESAR II load cases selected at the beginning.
How Load Case Results Guide Real Engineering Decisions
Stress reports are not generated simply to declare pass or fail. They are used to deciding what must physically change in the piping layout.
Based on the analyzed load cases in CAESAR II, engineers may:
- Add Or Shift Supports,
- Introducing Spring Hangers,
- Reduce Nozzle Loading,
- Install Line Stops,
- Revise Anchor Points,
- Add Temporary Hydrotest Supports,
- Or Improve Thermal Flexibility.
In other words, the solved load cases directly influence the reliability of the final piping design.
Rishabh Pro Engineeringās Approach to Load Case Definition
At Rishabh Pro Engineering, we do not approach CAESAR II load cases as a software checklist. We approach them as a reflection of how the piping will behave in the plant.
Our stress engineering team defines the load case matrix only after evaluating:
- Process Operating Philosophy,
- Fluid Characteristics,
- Temperature Range,
- Testing Methodology,
- Support Interaction,
- Equipment Sensitivity,
- Environmental Criteria,
- And Possible Transient Events.
This allows us to build practical, project-specific CAESAR load cases that simulate not just theoretical compliance, but actual field operating conditions. Whether it is a refinery header, utility rack, chemical process line, offshore module, or high-temperature transfer system, the focus remains the same, build the right loading scenarios first, then trust the analysis.
Final Words
A piping model may define the physical route, but it is the load cases that reveal how the system will truly perform under weight, pressure, temperature, environmental influence, and sudden operational forces. More importantly, they determine whether the final stress report can be confidently used for support design, flexibility validation, nozzle protection, and long-term service reliability. This is why successful stress studies are never achieved by simply running CAESAR II, they are achieved by building the right load scenarios and interpreting them with sound engineering judgment. As an experienced pipe stress analysis company, Rishabh Pro Engineering focuses on developing practical load case combinations that allow CAESAR II to simulate real operating behavior and deliver dependable engineering decisions.
Frequently Asked Questions On Load Cases In CAESAR II
Q: Can I use the same load case matrix for every project?
A: No. Load cases must reflect each project’s unique process conditions, fluid type, temperature range, and environmental criteria. A standard matrix may miss critical scenarios specific to offshore modules, multiphase lines, or high-temperature transfer systems.
Q: What happens if a load case is accidentally skipped during analysis?
A: The stress report may still generate passing results, but against incomplete conditions. A missed hydrotest or slug case could mean undersized support or vulnerable nozzles that only fail during actual plant operation, not during software review.
Q: How does thermal expansion interact with occasional loads like wind or seismic?
A: Wind and seismic are typically applied on the hot displaced pipe position, meaning the system has already shifted before the occasional load acts. This combined state often produces higher restraint demands than either condition checked independently.
Q: When should transient load cases like surge or water hammer be added?
A: Only when hydraulic transient studies confirm surge risk ā typically in systems with rapid valve closure, sudden pump trips, or abrupt fluid acceleration. Not every line requires them but omitting them where applicable can compromise anchor stability.
