Excessive piping vibration is more than an operational nuisance. Left unresolved, it can contribute to flange leakage, support damage, fatigue cracking, equipment nozzle loading, and ultimately unplanned shutdowns or loss of containment. The risk becomes more significant when vibration coincides with natural frequencies of the piping system or creates high cyclic stresses at vulnerable locations such as small-bore connections and welded attachments.
Piping design codes provide essential requirements for pressure integrity, flexibility, sustained loads, thermal expansion, and other design conditions, but vibration-related failure mechanisms often require additional engineering assessment. This is why piping vibration analysis should be considered alongside conventional stress analysis, particularly for systems connected to rotating or reciprocating equipment, pressure-reducing devices, high-velocity flow paths, and transient services.
In this article, we explore what piping vibration analysis involves, the common causes and effects of piping vibration, the data required for vibration measurement and assessment, key analysis methods, and practical mitigation strategies. We also highlight how Rishabh Pro Engineering supports clients in identifying vibration risks and developing reliable, engineering-led solutions.
What Is Piping Vibration Analysis?
Piping vibration analysis is a dynamic engineering assessment used to evaluate how a piping system responds to excitation forces, including flow turbulence, pressure pulsations, mechanical equipment, acoustic excitation, and transient events. Unlike static stress analysis, it examines natural frequencies, mode shapes, dynamic response, vibration severity, and vibration-induced stresses to identify resonance and fatigue risks.
A piping system has multiple natural frequencies determined by its mass distribution, stiffness, geometry, support, and connected equipment. If an excitation frequency approaches one of these natural frequencies, resonance can occur and significantly amplify the response.
For this reason, a pipe vibration analysis is not simply a matter of measuring how much a pipe moves. The engineering question is why the system is vibrating, how it is responding, and whether the resulting cyclic loads can affect piping integrity or connected equipment.
Common Causes of Piping Vibration

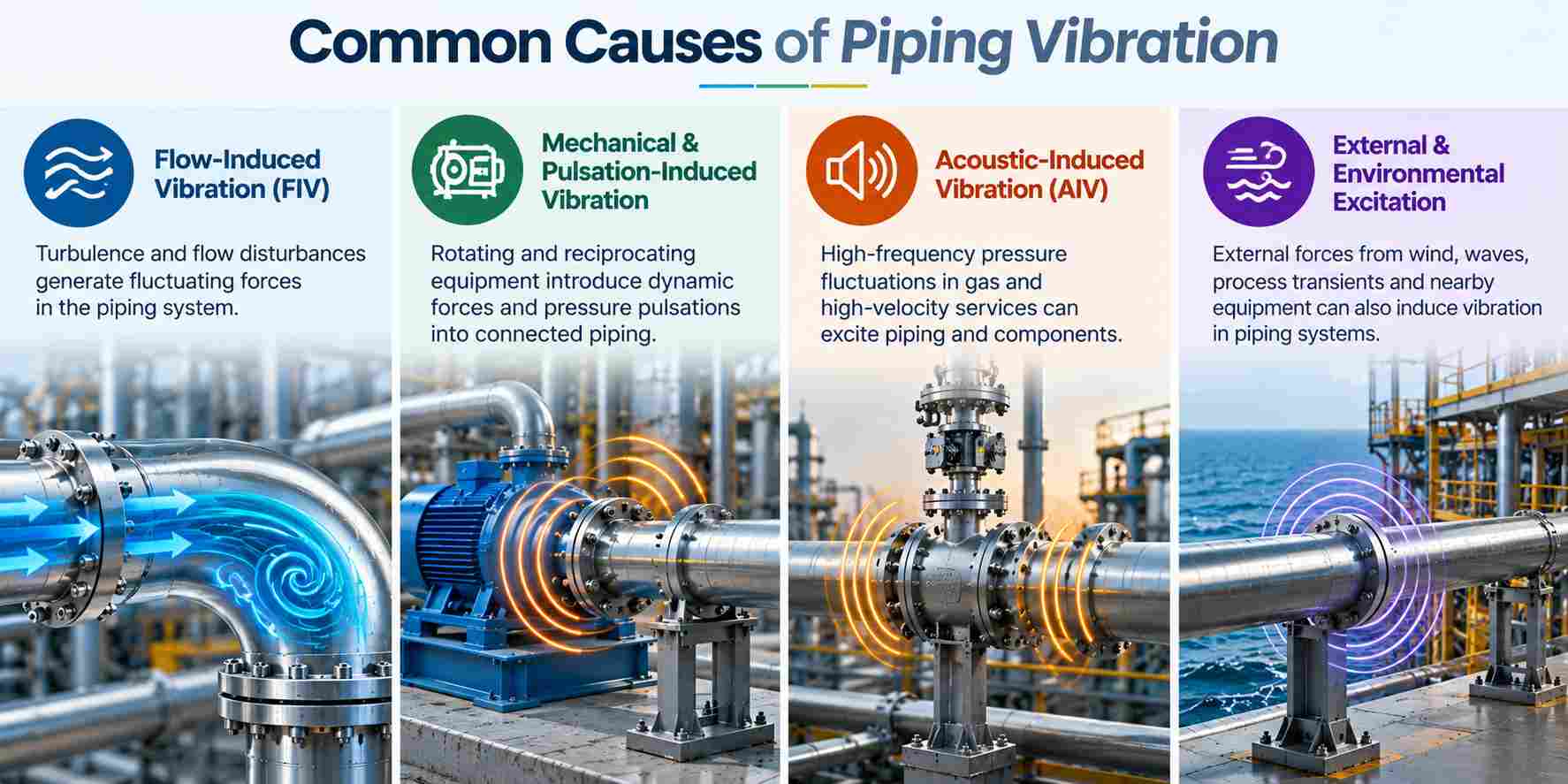

The causes of piping vibration can be grouped into several major categories. Identifying the excitation mechanism is important because the appropriate mitigation depends on the source rather than simply increasing pipe supports.
Flow-Induced Vibration (FIV)
FIV occurs when fluid movement generates fluctuating forces within the piping system.
Turbulence can develop around:
- Bends and elbows
- Tees and branches
- Partially open valves
- Reducers and expanders
- Orifices and other flow restrictions
- Small-bore connections
- Sudden changes in flow direction or velocity
High flow velocity and abrupt changes in geometry can increase turbulence and dynamic excitation. Depending on the system configuration, vortex shedding and other flow-related phenomena can also generate periodic excitation. The resulting vibration may be particularly significant where the piping system is flexible or where the excitation frequency approaches one of its natural frequencies. Our teamidentifies flow-induced vibration as a common process-piping risk and notes that turbulence generated at flow discontinuities can excite piping and connected equipment.
What engineers evaluate?
An FIV assessment may consider:
- Fluid velocity
- Density and operating conditions
- Pipe geometry
- Flow discontinuities
- Support configuration
- Natural frequencies
- Mode shapes
- Expected excitation frequencies
- Vibration amplitude and stress response
Mechanical & Pulsation-Induced Vibration
Rotating and reciprocating equipment can introduce dynamic forces into connected piping.
Typical sources include:
- Pumps
- Compressors
- Reciprocating compressors
- Turbines
- Positive displacement equipment
- Motors and rotating machinery
Mechanical excitation may occur at equipment running speed or at harmonics of the operating frequency. Reciprocating equipment can additionally generate pressure pulsations that propagate through the connected piping. A system can therefore appear acceptable under static conditions but still experience excessive vibration when operating equipment introduces a forcing frequency close to a piping natural frequency. For example, a compressor discharge line may experience pulsation-driven excitation that interacts with the mechanical modes of the connected pipework. In such cases, evaluating only sustained and thermal stresses would not provide a complete picture of system behavior. Our team describes dynamic analysis as an extension of the static piping stress model, with modal, harmonic, spectrum and time-history approaches selected according to the nature of the excitation.
Acoustic-Induced Vibration (AIV)
AIV is generally associated with high-frequency acoustic energy generated when gases pass through pressure-reducing devices.
Ā Potential sources include:
- Pressure relief valves
- Control valves
- Blowdown valves
- Orifices
- Oher pressure-reducing devices
AIV is particularly important in gas and high-pressure services. The high-frequency excitation can produce significant dynamic stresses in the pipe wall and at discontinuities such as welded supports and small-bore connections. Because the excitation frequency can be high, fatigue damage may develop rapidly if a vulnerable component is exposed to sufficiently severe vibration. In FPSO applications, both AIV and FIV should be considered when evaluating vibration-related fatigue risks in piping systems exposed to high-pressure flow, turbulence, and dynamic operating conditions. Our team notes that AIV can produce high-frequency vibration and dynamic stresses at welded features, including supports and small-bore connections.
Water Hammer, Cavitation & Flashing
Transient flow conditions can generate substantial dynamic loads.
Water hammer
Rapid opening or closure of a valve can cause a sudden change in fluid momentum, generating a pressure surge that travels through the piping system.
The resulting transient forces can affect:
- Pipe supports
- Anchors and guides
- Elbows and branches
- Equipment nozzles
- Valves
- Connected structures
Cavitation
It occurs when local pressure falls sufficiently for vapor bubbles to form and subsequently collapses. The resulting pressure fluctuations can generate vibration, noise, material damage and equipment degradation.
Flashing
This occurs when a liquid undergoes a pressure reduction that causes part of the fluid to vaporize. High-velocity two-phase flow can create significant vibration and dynamic loading. These phenomena should not be treated simply as support problems. If the excitation source remains, adding support alone may not address the underlying cause.

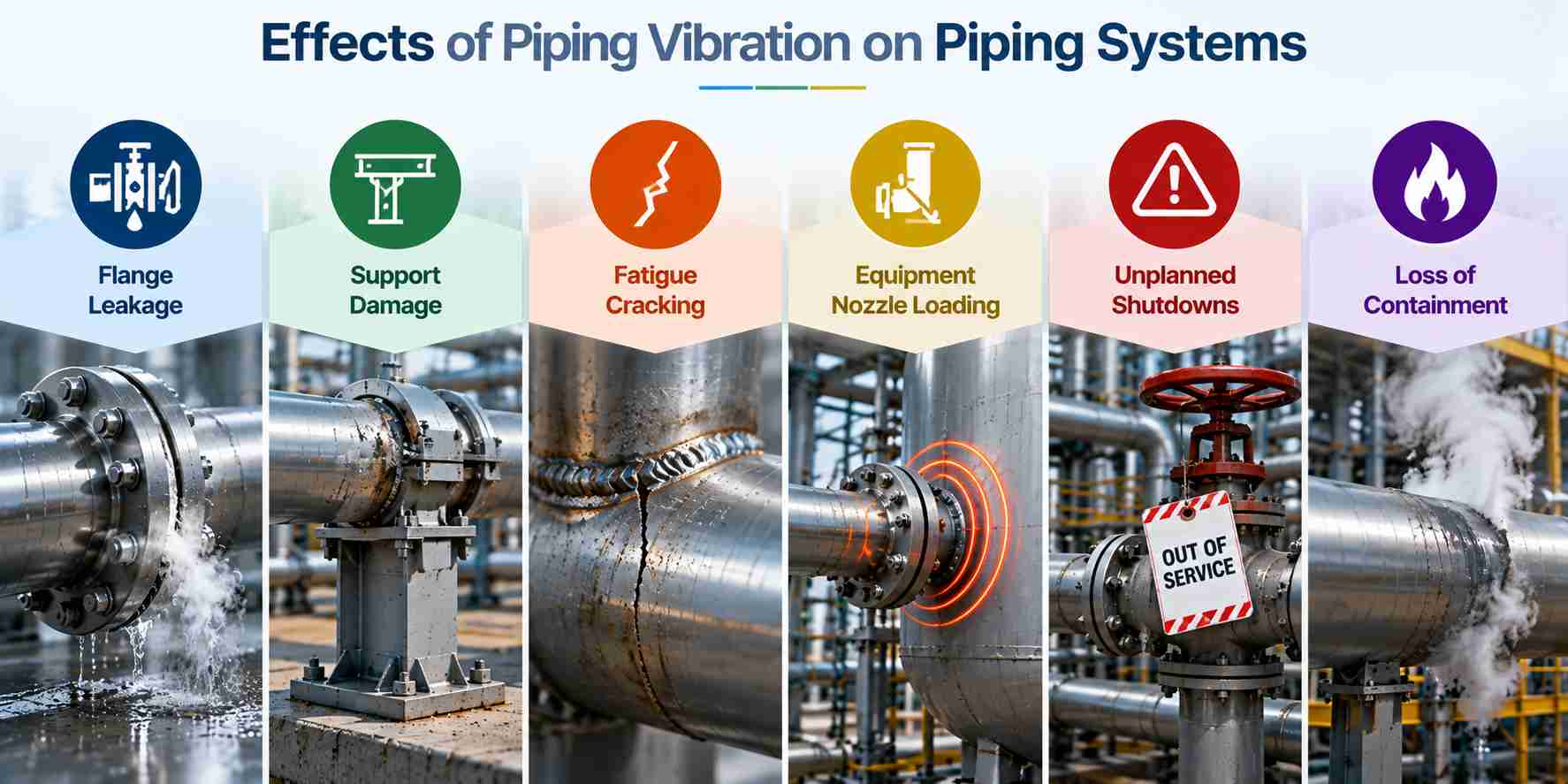

Effects of Piping Vibration on Piping Systems
The consequences of excessive vibration depend on the magnitude, frequency, duration, system geometry, material, support arrangement, and location of vulnerable components. A small vibration level may be manageable in one system but potentially damaging in another if it produces resonance or significant cyclic stress.
Fatigue Failure
One of the primary concerns associated with persistent piping vibration is fatigue. Unlike a single static load, vibration applies repeated cyclic loading. Even when the resulting stress is below the material’s yield strength, repeated cycles can eventually initiate and propagate fatigue cracks.
The risk becomes more significant at:
- Welded attachments
- Branch connections
- Small-bore connections
- Pipe shoes and support attachments
- Instrument connections
- Nozzle connections
- Geometric discontinuities
This is why vibration assessment should consider not only displacement or velocity but also the resulting dynamic stress and number of operating cycles.
Small-Bore Connection Failures
Small-bore connections (SBCs) are frequently vulnerable to vibration-related fatigue because they can behave as relatively flexible cantilevered components connected to a much larger main pipe.
Examples include:
- Instrument branches
- Drains
- Vents
- Thermowells
- Relief lines
- Small valves
- Pressure taps
The main pipe may appear relatively stable while the small-bore component experiences considerably higher local movement. Poorly supported valves, insufficient bracing, fabrication deviations and stress concentrations at branch welds can further increase the risk.
Flange Leakage
Excessive vibration can cause repeated movement at flanged joints.
Depending on the configuration, this may contribute to:
- Bolt loading variations
- Gasket degradation
- Loss of flange tightness
- Leakage
- Repeated maintenance requirements
This becomes particularly important in systems carrying hazardous, flammable, toxic or high-pressure fluids.
Support and Structural Damage
Vibration can cause repeated loading at pipe supports and structural connections.
Potential consequences include:
- Loosened supports
- Wear at contact points
- Damaged clamps
- Fatigue of support members
- Cracked welds
- Excessive movement
- Localized impact or rubbing
A support modification that appears simple may also change the stiffness of the piping system. Consequently, support changes should be evaluated against the complete piping stress and flexibility behavior rather than implemented in isolation.
Equipment Nozzle Loading
Piping vibration can transmit dynamic forces to connected equipment.
This can affect:
- Pumps
- Compressors
- Pressure vessels
- Heat exchangers
- Turbines
- Skids
- Rotating equipment nozzles
Excessive dynamic loading can contribute to equipment reliability issues even when the piping itself does not show obvious damage. This is particularly relevant because piping flexibility and vibration behavior are closely connected. Increasing stiffness may reduce pipe movement in one location while transferring additional loads to an equipment nozzle or support.
Unplanned Shutdowns and Maintenance
The commercial impact of vibration can extend well beyond the affected pipe.
A vibration-related failure may require:
- Equipment shutdown
- Isolation and depressurization
- Inspection
- Root-cause investigation
- Temporary modification
- Permanent engineering redesign
- Fabrication and installation
- Recommissioning
For operating facilities, the cost of lost production can significantly exceed the cost of addressing the vibration during design. This is why pipework vibration assessment is valuable not only as an integrity exercise but also as a reliability and lifecycle-cost consideration.
Data Inputs for Piping Vibration Measurement
Effective piping vibration measurement and analysis depend heavily on the quality of engineering and operating information available. A specialist engineering team should ideally receive the following information from the client.
Piping Engineering Information
Typical inputs include:
- P&IDs
- Piping layouts
- Isometric drawings
- Line list
- Piping specifications
- Pipe sizes and schedules
- Material specifications
- Insulation information
- Valve details
- Branch connections
- Small-bore connection details
Equipment Information
Where applicable, equipment information should include:
- Pump and compressor data
- Equipment operating speeds
- Reciprocating equipment details
- Equipment nozzle information
- Vendor drawings
- Pulsation data
- Relief and control valve information
- Operating and shutdown conditions
Operating Data
Useful operating information includes:
- Flow rate
- Pressure
- Temperature
- Fluid density
- Fluid phase
- Operating range
- Start-up and shutdown conditions
- Valve operating conditions
- Transient events
Existing Field Measurements
For operating facilities, the client may already have vibration measurements.
These can include:
- Vibration velocity
- Acceleration
- Displacement
- Frequency spectra
- Time waveform data
- Measurement locations
- Operating conditions during measurement
The quality of the field data matters. A vibration reading without corresponding operating conditions, measurement location and frequency information may not be sufficient to establish the root cause. The objective is not simply to collect a vibration number. It is to connect the measured response with the piping geometry, excitation source and operating condition.
Severity Screening for Piping Vibration
Before undertaking detailed dynamic analysis, a screening assessment can help identify systems or locations that warrant further investigation.
Relevant engineering references may include:
- EI Guidelines for vibration-related assessment and industry screening practices
- VDI 3842 ā Vibrations in Piping Systems, which addresses vibration phenomena, excitation mechanisms, calculation methods, measurement, evaluation and remedial measures.
- ISO 10816 for vibration evaluation principles and measurement concepts where applicable to the equipment and measurement context
However, these references should not be treated as a single universal vibration limit for every piping system. Ā Acceptability depends on the vibration parameter being measured, frequency range, piping configuration, material, fatigue susceptibility, operating conditions, connected equipment and applicable project or client criteria. VDI 3842 specifically covers both vibration measurement and the evaluation of vibration-induced stresses, reinforcing the importance of looking beyond a single vibration reading.
Piping Vibration Analysis Methods
The appropriate pipe vibration analysis method depends on the excitation mechanism, available data and required level of engineering confidence.
Static Analysis
Static pipe stress analysis evaluates loads such as:
- Weight
- Pressure
- Thermal expansion
- Sustained loads
- Wind
- Seismic loads
- Occasional loads
Although static analysis does not characterize vibration behavior itself, it provides an important baseline. It can identify support conditions, flexibility issues and stress locations that may influence dynamic behavior.
Dynamic Analysis
Dynamic analysis evaluates the response of the piping system to time-dependent or cyclic loads. The analysis method should correspond to the type of excitation.
Modal Analysis
It helps determine;
- Natural frequencies
- Mode shapes
- Dynamic characteristics of the piping system
It helps engineers determine whether the system’s natural frequencies are close to known excitation frequencies. A piping system with low natural frequencies may be more susceptible to dynamic excitation depending on the forcing mechanism and operating conditions.
Harmonic Analysis
It is useful when the excitation can be represented by a periodic force or pressure variation.
Typical applications include:
- Rotating equipment excitation
- Reciprocating equipment
- Pressure pulsations
- Periodic mechanical forces
The objective is to determine the piping response at relevant excitation frequencies.
Spectrum Analysis
Spectrum-based methods can be used where the loading is represented through a response spectrum or frequency-dependent excitation. They can be relevant to certain transient or seismic loading scenarios depending on the project methodology.
Time-History Analysis
This analysis evaluates the piping response to a load that varies with time. It can be particularly useful for transient events where a representative force or pressure-time history is available. Our team identifies static-equivalent, modal, harmonic, spectrum and time-history methods as potential approaches depending on the nature of the dynamic loading.
How to Mitigate Piping Vibration
Effective pipe vibration mitigation starts with identifying the excitation mechanism. There is no universal āadd a supportā solution.
Reduce the Excitation Source
Where practical, engineers may address the source by:
- Reducing excessive flow velocity
- Modifying valve operation
- Addressing pump or compressor imbalance
- Correcting equipment alignment issues
- Reducing pressure pulsation
- Modifying pressure-reducing devices
- Reviewing process operating conditions
Source-based mitigation is often preferable because it addresses the reason the vibration exists rather than simply restricting its movement.
Modify Piping Stiffness
The natural frequency of a piping system is influenced by its stiffness and mass.
Engineers may therefore consider:
- Adding or relocating supports
- Adding guides or restraints
- Reducing unsupported spans
- Improving local bracing
- Modifying pipe routing
- Increasing structural stiffness
However, these modifications should be validated through stress analysis because changing stiffness can also alter thermal expansion behaviour and equipment loads.
Avoid Resonance
One of the central objectives of vibration analysis is to prevent the excitation frequency from coinciding with a piping natural frequency.
This can involve changing:
The excitation frequency
or
The piping system’s natural frequency
For example, support modification can change the effective stiffness and therefore shift a natural frequency. Letās try to understand this relationship using the analogy of resonance: when excitation and natural frequency coincide, even relatively small periodic forces can produce a significantly larger response.
Strengthen Vulnerable Connections
Where the main piping system is acceptable, but a local component remains vulnerable, engineers may consider:
- Small-bore bracing
- Local reinforcement
- Improved support configuration
- Redesign of branch connections
- Modification of Valve Supports
- Reducing unsupported cantilever lengths
The modification should be evaluated against the complete system because local strengthening can transfer loads elsewhere.
Verify the Modified System
A mitigation solution should not be considered complete simply because the visible vibration has reduced.
The modified design should be checked for:
- Piping stresses
- Dynamic response
- Natural frequencies
- Equipment nozzle loads
- Support loads
- Thermal expansion
- Fatigue
- Constructability
This is particularly important in brownfield facilities where changes are being made to an existing operating system.
How Rishabh Pro Engineering Supports Piping Vibration Analysis: From Vibration Risk to Engineering Action
At Rishabh Pro Engineering, our pipe stress analysis consultantsĀ integrate piping vibration assessment with broader piping stress and flexibility engineering rather than treating it as an isolated calculation.
Our approach can cover:
- Piping flexibility and stress analysis
- Dynamic load assessment
- FIV and AIV assessment
- Fatigue evaluation
- Support and restraint optimization
- Equipment nozzle load evaluation
- Dynamic modelling
- Existing piping assessment
- Engineering modification recommendations
Our team uses engineering analysis tools including Octave Aspect Pipe Stress (formerly CAESAR II) to model piping behavior under static and dynamic loading conditions. Our current service portfolio includes thermal, seismic, dynamic, fatigue, AIV and FIV assessment, along with support and anchorage optimization.
Case Study: Pipe Stress Analysis for Gas Treatment Unit
For a gas treatment unit associated with a gas compression and pipeline project, Rishabh Pro Engineering conducted pipe stress analysis for the gas treatment plant while evaluating 355 stress-critical piping lines.
The scope included 3D stress modelling, flexibility verification, equipment nozzle load evaluation, support optimization and multiple operating and occasional load cases including surge, slug flow and pressure relief conditions. The engineering team also modified piping geometry and support arrangements near an equipment connection, incorporating hold-down, guide and rest supports to improve piping stability and meet flexibility requirements. This type of multidisciplinary approach is important because vibration mitigation can affect piping flexibility, support loads and equipment interfaces simultaneously.
Concluding Thoughts
Piping vibration is fundamentally a dynamic engineering problem. The visible movement of a pipe is only the symptom; the underlying issue may be turbulence, pulsation, mechanical excitation, acoustic energy, transient flow or resonance between an excitation source and the piping system.
A robust piping vibration analysis therefore needs to connect operating conditions, field measurements, piping geometry, support configuration, natural frequencies and dynamic stresses. The earlier these risks are identified, the more options engineers have to address them through layout, support, operating or equipment modificationsābefore vibration develops into leakage, fatigue failure, equipment damage or an unplanned shutdown.
We combine piping stress, flexibility, dynamic analysis and multidisciplinary engineering expertise to help clients identify vibration risks and develop practical, engineering-led solutions.
Frequently Asked Questions On Piping Vibration Analysis
Q: Why is pipework vibration assessment important?
A: Pipework vibration assessment helps identify dynamic loading, resonance and fatigue risks that may not be visible through conventional static pipe stress analysis. It can help prevent fatigue cracking, flange leakage, small-bore connection failures, support damage and equipment reliability issues.
Q: How can I detect and reduce pipe vibration in industrial systems?
A: Detection typically combines field vibration measurements, operating data, engineering drawings and dynamic analysis. Depending on the source, mitigation may involve modifying operating conditions, addressing equipment excitation, changing pipe supports, modifying routing, improving bracing or altering the system’s dynamic characteristics.
Q: What is the impact of piping flexibility on equipment vibration levels?
A: Piping flexibility affects how dynamic forces and displacement are transmitted through the system. A highly flexible section may experience larger movement, while excessive stiffness can transfer greater loads to connected equipment. The objective is to achieve an appropriate balance between piping flexibility, support conditions, dynamic response and equipment nozzle loads.
Q: What causes piping vibration in process facilities and when should we bring in a specialist consultant?
A: Common causes include flow-induced turbulence, mechanical excitation, pressure pulsations, acoustic-induced vibration, water hammer, cavitation and flashing. Specialist assessment is particularly valuable when vibration is persistent, increasing, associated with rotating or reciprocating equipment, occurring near valves or small-bore connections, or accompanied by leakage, unusual noise, support damage or repeated failures.
Q: What is pipework vibration assessment?
A: Pipework vibration assessment is the engineering evaluation of vibration sources, piping dynamic characteristics, measured vibration response and vibration-induced stresses. It may combine screening, field measurements, dynamic modelling and fatigue assessment to determine whether the piping system requires corrective action.
Q: What’s the difference between pipe stress analysis and piping vibration analysis?
A: Pipe stress analysis primarily evaluates stresses, strains, displacements and loads resulting from conditions such as weight, pressure and thermal expansion. Piping vibration analysis focuses on dynamic behavior, including natural frequencies, mode shapes, excitation frequencies, vibration response and cyclic stresses. The two are complementary. A piping system can satisfy conventional static stress requirements while still being susceptible to vibration-induced fatigue.
Q: What are acceptable piping vibration limits?
A: There is no single vibration limit that applies to every piping system.
Acceptability depends on the vibration measurement parameter, frequency, piping configuration, material, fatigue sensitivity, excitation mechanism, connected equipment and applicable project criteria. Screening and detailed assessment may reference documents such as EI Guidelines, VDI 3842 and ISO 10816 where applicable. Detailed engineering evaluation may also be required when measured vibration indicates a potential fatigue or resonance concern.
