3D modeling for liquid nitrogen storage and vaporization package using PDMS
Description
Client
The client is largest manufacturer of Cryogenic liquid storage and transport tanks in India, and a reputed supplier to leading international Gas organization globally like Air Liquide, Linde, Messer, Taiyo Nippon Sanso , Praxair and many more.
Engineering Requirement

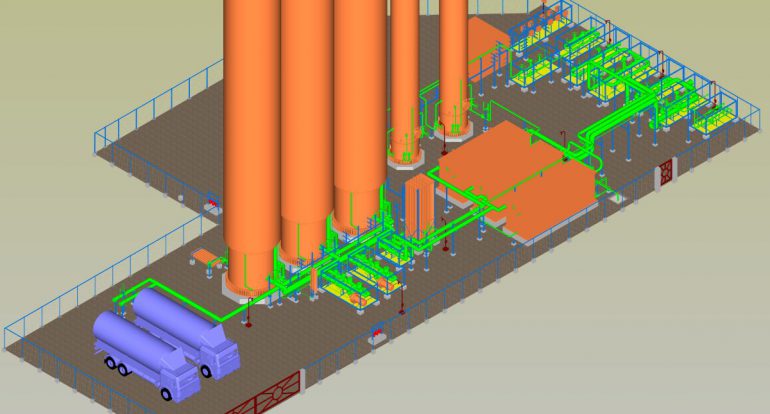

- 3D modeling for a LIN storage and vaporization
Equipment modeling - Modeling of structural platforms like ladders, manholes, envelopes
- Piping modeling (90 nos. of lines)
- Skid structural modeling
- Physical support modeling
- Modeling of instruments, junction boxes with supports
Delivered
- 3D Model at different stage for review (30%, 60% & 90%)
- Final 3D Model
