Perform process piping interchange and stress analysis for new urea reactor layout for Indian firm specializing in fertilizers and chemicals.
Piping Layout & Stress Analysis for Ammonia Urea Complex
Client
India-based Agriculture-Focused Industrial Group
Category
Oil & Gas
Location
India
Project Duration
1 Month
Software Tools
Engineering Requirement

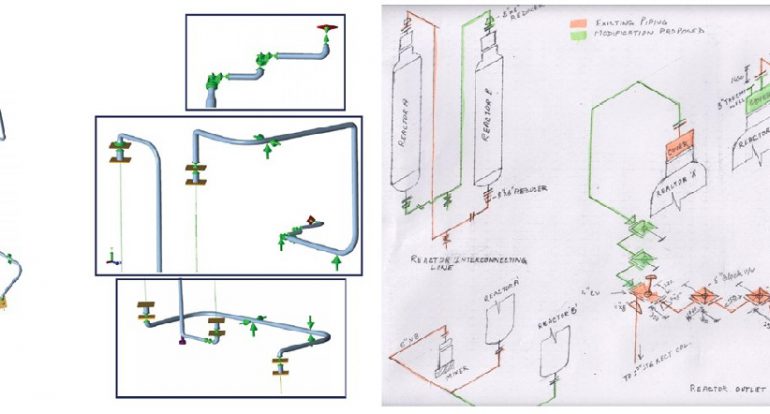

Execution of a brownfield project that involved interchange of process piping of 2 Urea Reactor Units that were connected in series & Piping Stress Analysis for the new layout.
Project Deliverables
Piping Stress Reports
C2 File
Simplified Reports for Support Design with I-Sections
GA Drawings, Isometrics, Pipe Support Fabrication Drawings
Bill of Material
