Description

Client

The client is a leading heater manufacturer in South Korea that engages in the construction, maintenance, and revamping of fired heaters and air cooled condensers

Engineering Requirement

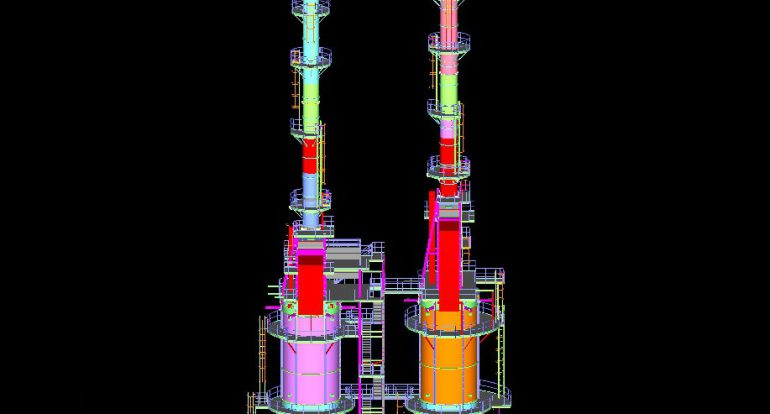

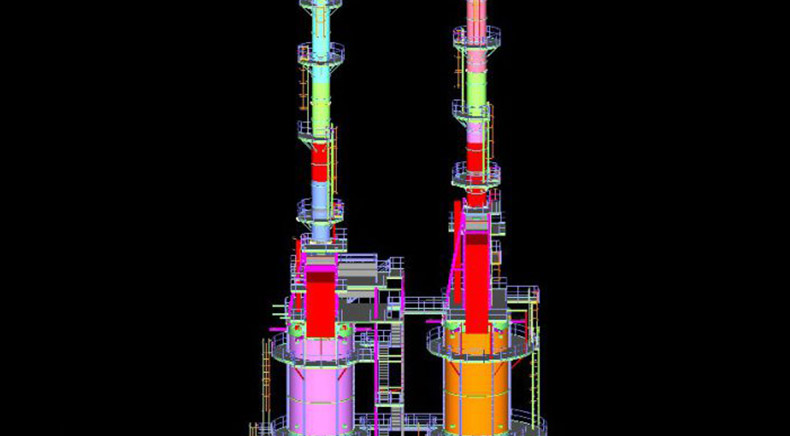

  • 3D modeling and pipe stress analysis of Heaters
  • Piping modeling
  • Piping support modeling
  • Stress analysis of stress critical lines
  • Integration of structural model from Tekla X Steel to PDS
  • Modeling of utility lines

Delivered

  • Isometric drawings
  • Consolidated piping – MTO in Excel format
  • Piping GA’s drawing
  • Final 3D model
  • Stress report
