Project Information
Finite Element Analysis & Piping Stress Analysis for process nozzles using Nozzle Pro and CAESAR II
Description
Client
A privately held multi-discipline engineering, procurement and construction management company that operate in industries like petrochemical, refining, paper, power, industrial power/cogeneration, gas transmission, manufacturing and fabrication.
Engineering Requirement

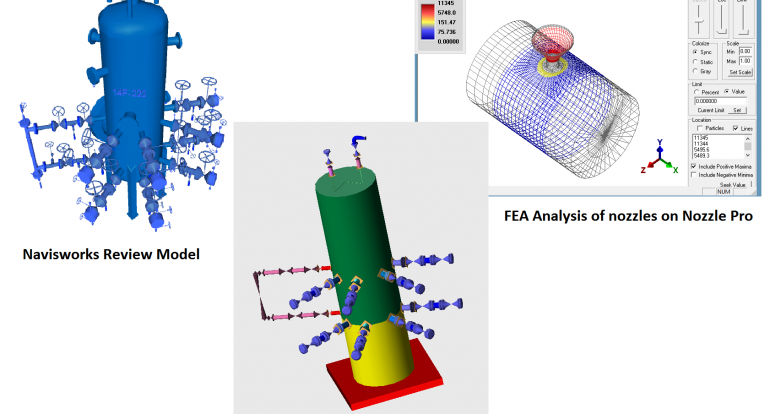

- Check and evaluate all the Process Nozzles connected to critical equipment’s like Knock Out Drum, Absorber Overhead Drum, Absorber Separator & Stripper Tower using Finite Element Analysis method on Nozzle Pro
- Piping Stress Analysis to analyze the piping loads, and then used the resulting loads in the Nozzle Pro to carry out FEA
Delivered
- Piping Stress Analysis & FEA by using ASME B31.3, ASME Section VIII Div. 2 Codes
- C2 File
- Nozzle Pro Report
- CAESAR Report
- Marked up Isometric Drawings
